Category | LINDE FORKLIFT, PALLET STACKERS, PALLET STACKERS | ||
Brand | LINDE | Power | Electric |
Model | L10 - L14C (Series 1169) | Year | N/A |
Capacity | 1000kg - 1400kg | Code | S1169 |
Specification | Load capacity 1000kg - 1400kg, lift height 2924mm. |

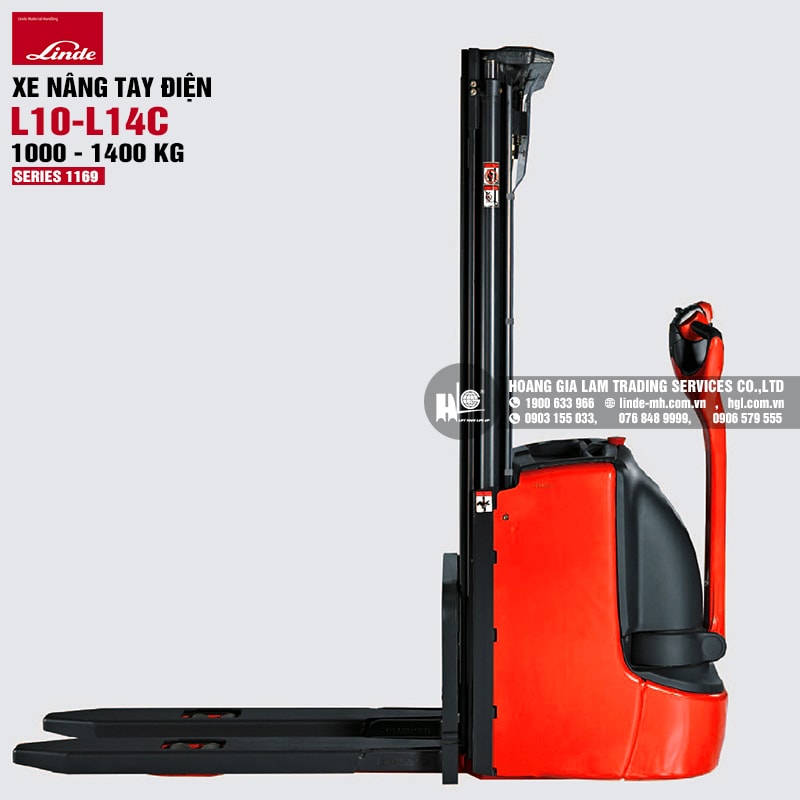

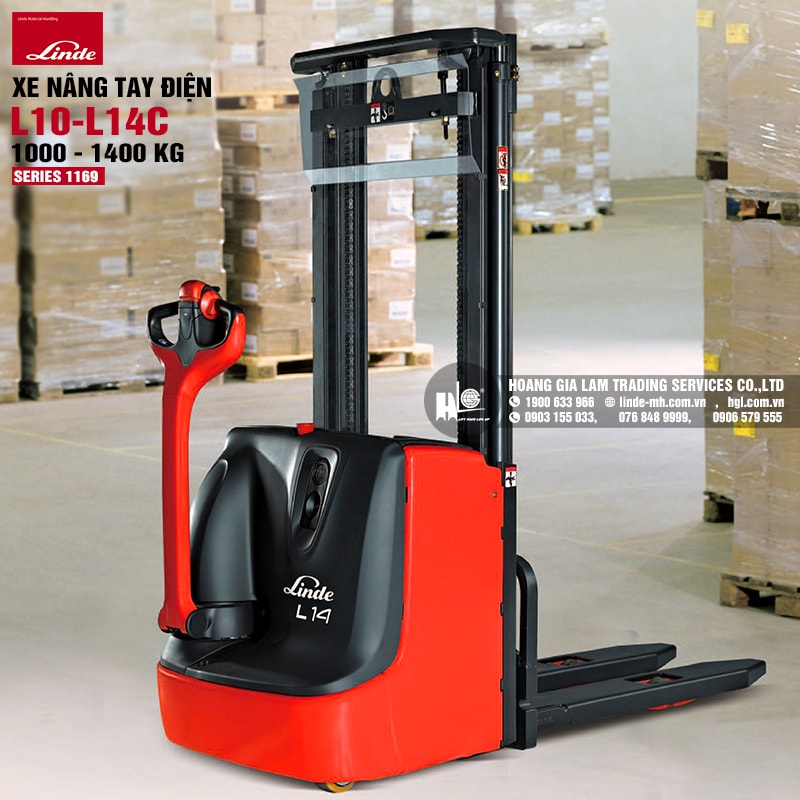

Linde L10 – L14C Electric Pallet Stacker (Series 1169)

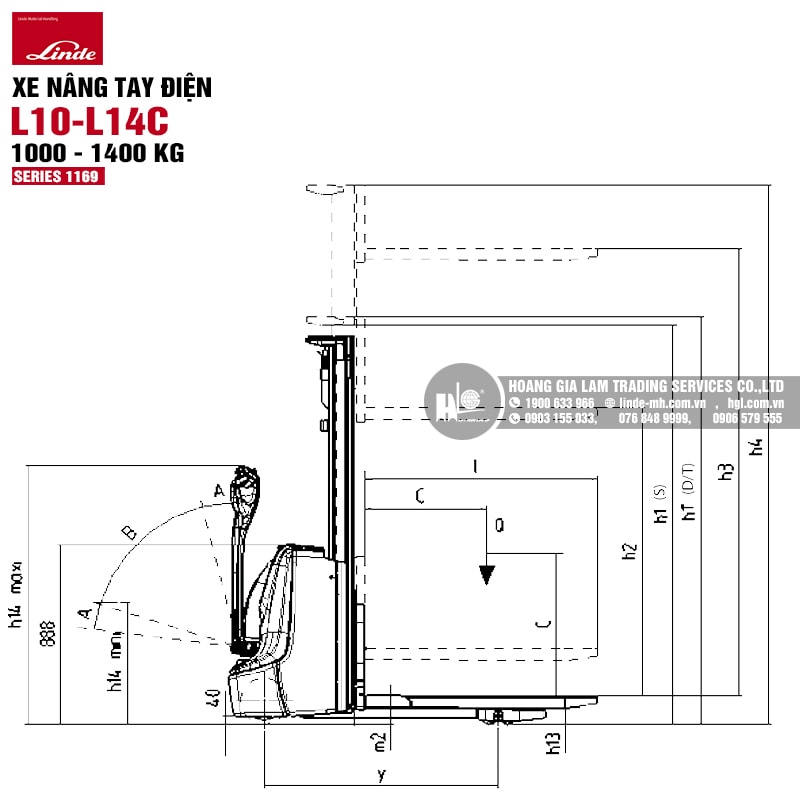

1. Specification
L10 | L12 | L14C | ||
Trọng tải nâng | kg | 1000 | 1200 | 1400 |
Tâm tải | mm | 600 | 600 | 600 |
Khối lượng xe | kg | 940 | 940 | 1020 |
Chiều cao nâng | mm | 2924 | 2924 | 2924 |
Kích thước càng nâng | mm | 180x60x1150 | 180x60x1150 | 180x60x1150 |
Phạm vi quay | mm | 1501 | 1444 | 1564 |
Tốc độ vận hành | km/h | 6.0/6.0 | 6.0/6.0 | 6.0/6.0 |
Công suất bình điện | V/Ah | 24/200 | 24/200 | 24/225 |
2. Features
Steering system
- Proportional speed control varies truck speed automatically in relation to the tiller angle for safe, comfortable and productive operation
- A Creep speed button ensures high manoeuvrability in confined areas when operating at low speeds with the tiller in the upright position
- End-of-stroke resistance on the tiller avoids accidental, abrupt braking
- Soft tiller fold-back slows down the tiller when returning into upright position, avoiding the tiller snapping on the motor cover
Lifting system
- OptiLift® mast control provides accurate, fully proportional lifting as well as smooth, quiet operation
- Wide range of mast options available

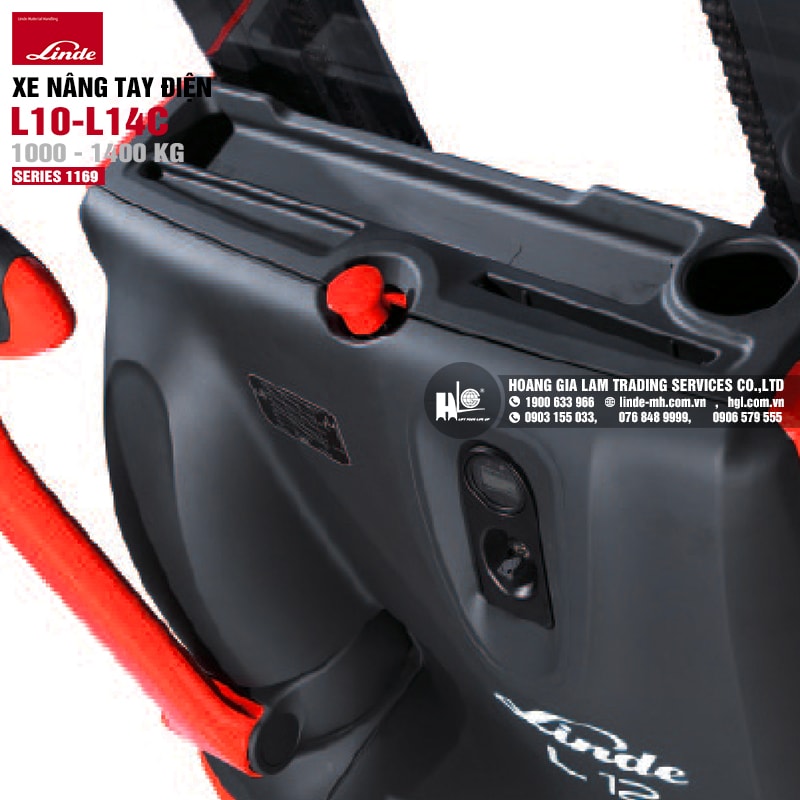

Working station & display
- Wide, deep storage compartment for shrink wrap, pens, markers etc.
- Strong Exxtral® motor and battery cover last the lifetime of the truck
- Multifunctional display as standard with hourmeter, maintenance indication, battery discharge indicator, fault code indication

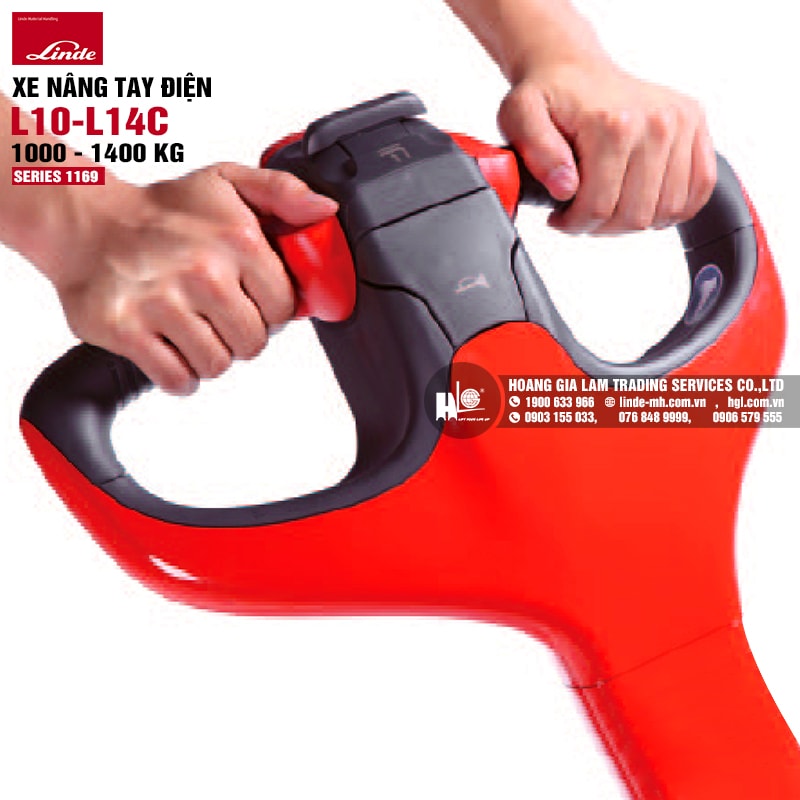

Tiller and tiller head
- Off-set, ergonomic Grivory® tiller head ensures safety and visibility
- Long tiller with low mounting point provides safety clearance between operator and chassis
- Wrap-around hand protection
- Comfortable controls, operable with either hand and gloves
Maintenance and Can-bus architecture
- Zero maintenance, moisture and dust-proof
- AC motor
- CAN-bus architecture enables fast, easy access to all truck data
- Individually adjustable parameters via diagnostic plug
- Rapid and convenient access to main components via front service pane
3. Safety
The hand guards of the off-centred tiller head effectively shield hands and keep the operator safety within the truck’s contours with excellent visibility through the mast. The long tiller mounted low down on the chassis ensures ample safety clearance between operator and truck.
4. Perfomance
The combination of a new AC motor and Linde LAC digital control makes these pallet stackers highly efficient. Operating parameters can be adjusted to match any application. The OptiLift® mast control provides accurate, fully proportional lifting and assures quiet smooth operation.
5. Comfort
All controls on the ergonomic tiller can be easily operated by either hand. A Creep speed button offers utmost manoeuvrability in confined areas. Proportional speed automatically alters traction speed in relation to the truck/operator distance. Finished in tactile materials, these trucks deliver accurate load handling for better productivity.
6. Reliability
Despite their visual appeal, these pallet stackers are rugged and durable. The mast channels are made from high grade rolled steel sections for strength and durability. Strong, longlasting, with memory effect, Exxtral® motor and battery cover protect the technical compartment from outside shocks

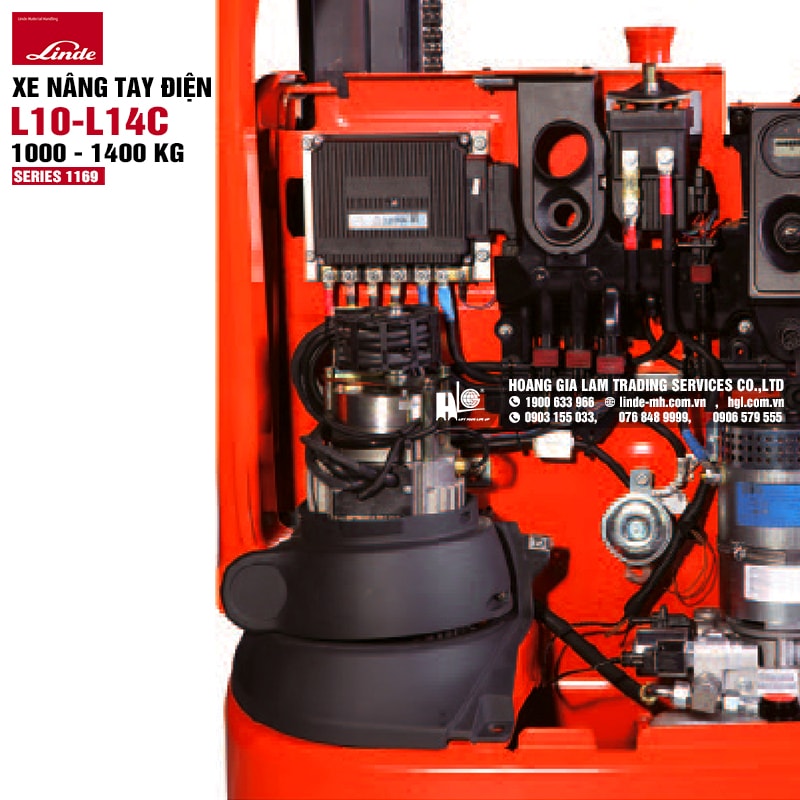

It is not just about the truck in operation: a maintenance-free AC motor maximises uptime reducing operating costs. All truck data is immediately and easily accessible to the service engineer via the CAN-bus architecture. Fast, easy access to all internal components ensures service tasks are completed with a minimum of delay.
