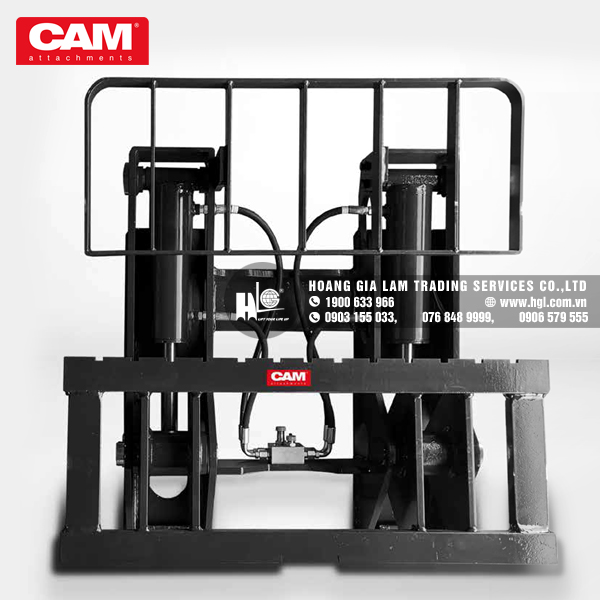

Hinged carriage (ZHF)

Hhinged carriage helps you to tip bulk cargo containers in a safe way. You can fit this attachment with a bucket to shovel all bulk goods such as sand, coal, grain, fertiliser, sods, blocks .

Hinged fork carriages are widely used in the wood industry, architecture & construction, metal industry and livestock industry. They are designed primarily for tilting forwards, the
hinged forks can also be conveniently used for handling palletised loads.

Characteristics

  • High-strength all-steel structure design, delivering high efficiency under continuous operation
  • E-slot in the overall framework to improve the stability of the product and extend the lifespan of the product
  • Extremely durable, thanks to the use of highest quality hydraulic components
  • Excellent visibility
  • Rugged yet lightweight construction
  • Fast arm opening speeds with less energy consumption
  • High nett capacity

Technical details

2 hydraulic functions



Model Capacity W4 Tilt Forward
A7
Tilt Backward
A8

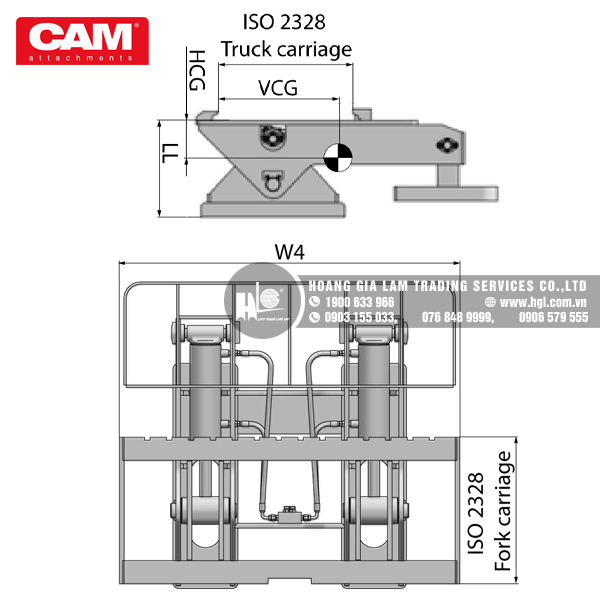

LL HCG VCG Weight ISO 2328
Truck
carriage
ISO 2328
Fork
carriage
kg/mm mm 0 0 mm mm mm kg
Standard bushings
ZHF15-970A 1500/500 970 45 25 341 144 378 276 2 2
ZHF25-1040A 2500/500 1040 45 25 341 144 380 288 2 2
ZHF30-1180B 3000/500 1182 45 25 341 153 379 318 3 3
ZHF45-1330B 4500/600 1332 45 25 350 154 367 419 3 3
ZHF50-1300C 5000/600 1300 45 25 445 190 446 654 3 3
ZHF50-1530C 5000/600 1530 45 25 445 198 440 680 4 4
ZHF50-1700C 5000/600 1700 45 25 445 203 436 695 4 4
